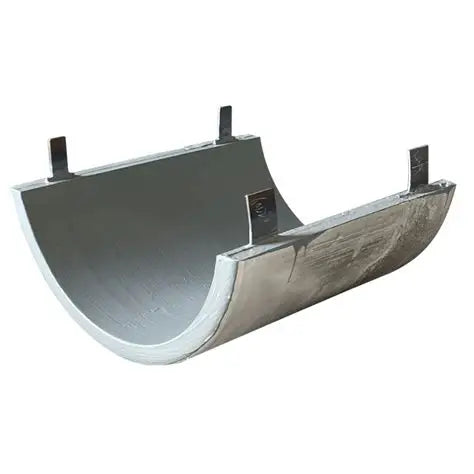

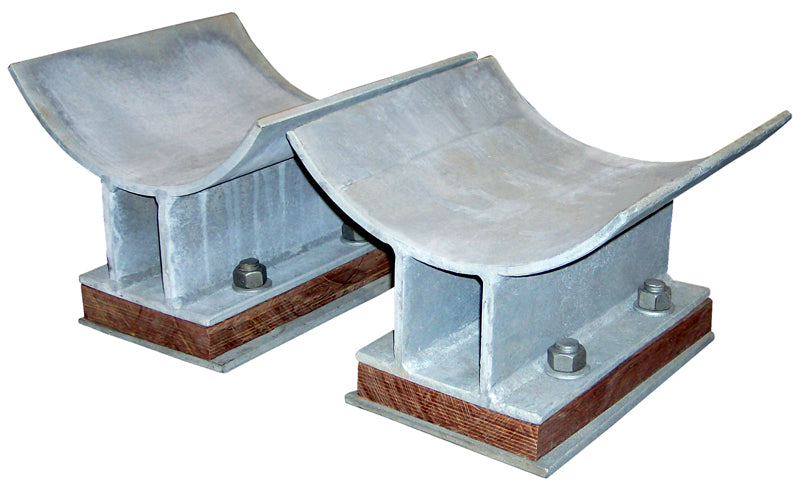

Heavy-duty carbon steel pipe shoes for supporting horizontal piping, with optional insulation shields for hot service.

Key Specifications:

• Material: ASTM A36 carbon steel
• Pipe Size Range: NPS 1" to NPS 48"
• Type: Standard, insulated, high-temperature
• Surface Finish: Painted, galvanized, stainless clad
• Standards: MSS SP-58, MSS SP-69

Features:

• Adjustable base plates
• Integrated insulation protection shields
• Anchor bolt holes (4-bolt pattern)
• Load capacity: 500 kg to 50,000 kg

Available Types:

• Standard pipe shoes (non-insulated)
• Insulated pipe shoes (with shield)
• High-temperature shoes (ceramic insulation)
• Stainless steel shoes (corrosive environments)

Applications:

• Pipe rack support
• Hot piping systems
• Steam lines
• Process piping

Finishes:

• Shop prime painted
• Hot-dip galvanized
• Stainless steel cladding
• .
