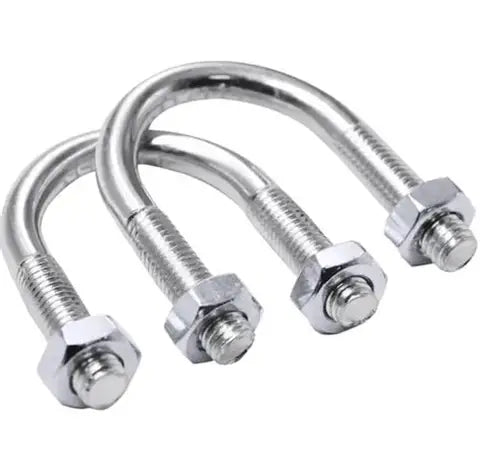

Carbon steel U-bolt assemblies for securing pipes to structural supports, complete with backing plates and nuts.

Key Specifications:

• Material: ASTM A36 carbon steel
• Thread: UNC or Metric
• Pipe Size Range: NPS 1/2" to NPS 48"
• U-Bolt Diameter: M12 to M48
• Finish: Zinc plated, hot-dip galvanized
• Standards: MSS SP-58

Complete Assembly Includes:

• U-bolt
• Backing plate (saddle)
• Hex nuts (4 pieces)
• Washers (4 pieces)

Available Configurations:

• Standard duty
• Heavy duty
• Extra-heavy duty
• Stainless steel (304, 316)

Applications:

• Pipe-to-beam attachments
• Riser clamps
• Vertical pipe support
• Seismic restraints

Special Options:

• Rubber or EPDM liners (vibration dampening)
• Insulation protection shields
• Adjustable spacing plates
