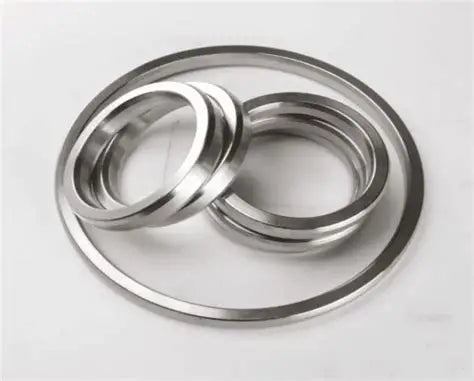

Ring Type Joint Gasket - Soft Iron, Style R

Description: Precision-machined ring type joint gaskets for high-pressure flange connections in critical service.

Key Specifications:

• Material: Soft iron, 316 SS, Inconel, Monel
• Style: R (oval), RX (oval with pressure energizing), BX (octagonal)
• Size Range: NPS 1/2" to NPS 24"
• Pressure Class: 600#, 900#, 1500#, 2500#
• Standards: ASME B16.20, API 6A, DIN 2696

Ring Profiles:

• R: Oval cross-section
• RX: Oval with internal pressure assist
• BX: Octagonal cross-section

Applications:

• High-pressure oil and gas wellheads
• Pipeline flanges
• Pressure vessel connections
• Critical process equipment

Pressure Rating: Up to 690 bar (10,000 psi)

Documentation:

• Material traceability
• Dimensional inspection reports
