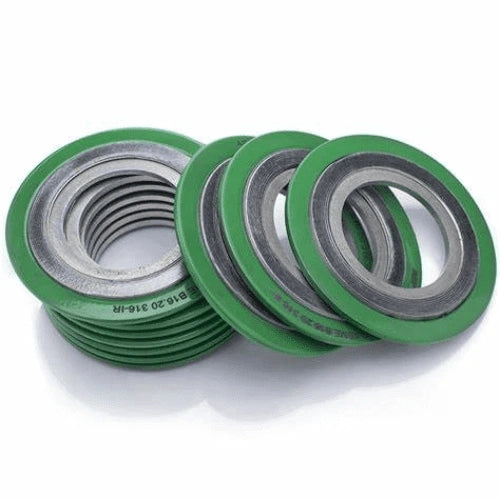

High-performance spiral wound gasket with 316 stainless steel winding and flexible graphite filler for critical sealing applications.

Key Specifications:

• Winding Material: 316 Stainless Steel
• Filler Material: Flexible Graphite
• Type: Inner Ring and Outer Ring
• Size Range: NPS 1/2" to NPS 60"
• Pressure Class: 150#, 300#, 600#, 900#, 1500#
• Standards: ASME B16.20, DIN 2697, EN 1514-2

Available Configurations:

• Style CG: With inner and outer ring
• Style CGI: With inner ring only
• Style R: Basic style (no rings)

Temperature Range: -200°C to +550°C

Applications:

• Flange joints in refineries
• High-temperature steam service
• Chemical processing
• Power generation

Pressure Rating: Up to 260 bar
